YJF 80 Shaded Pole Motor

YJF 80 Shaded Pole Motor
YJF 80 Shaded Pole Motor YJF 80 Shaded Pole Motor YJF 80 Shaded Pole Motor

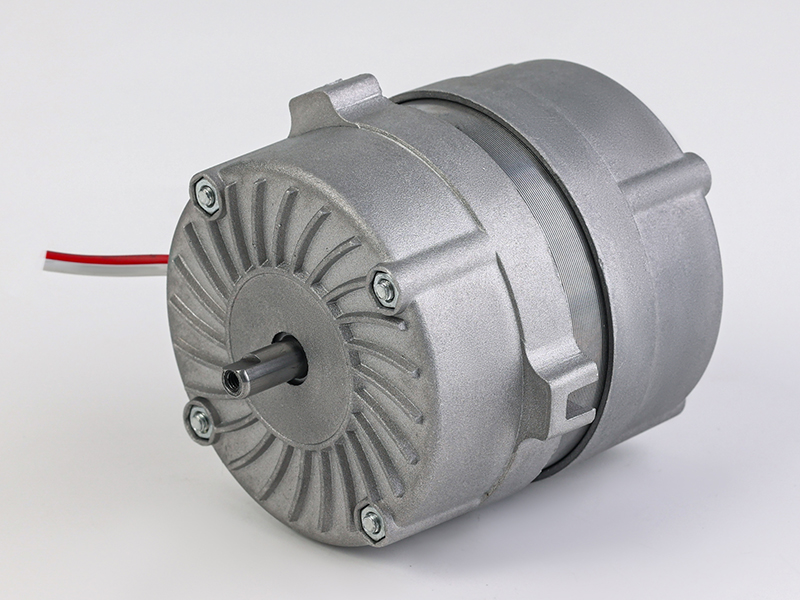

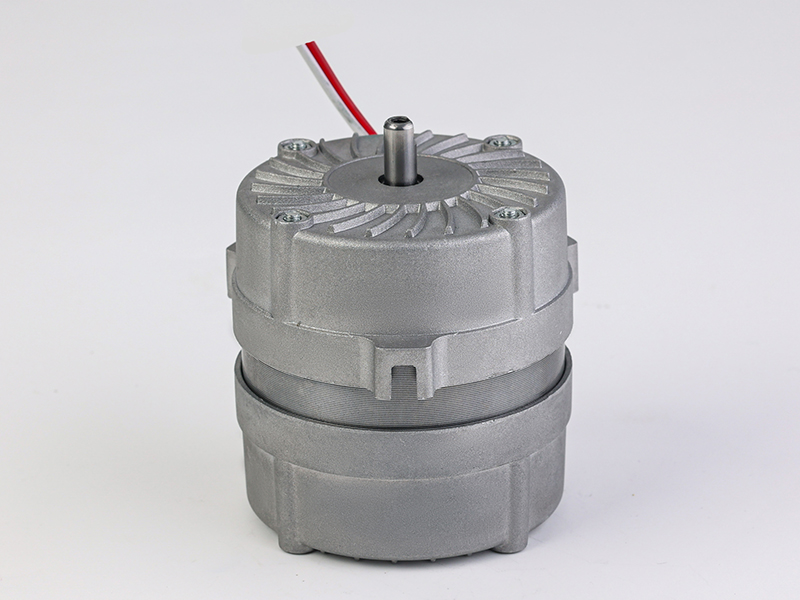

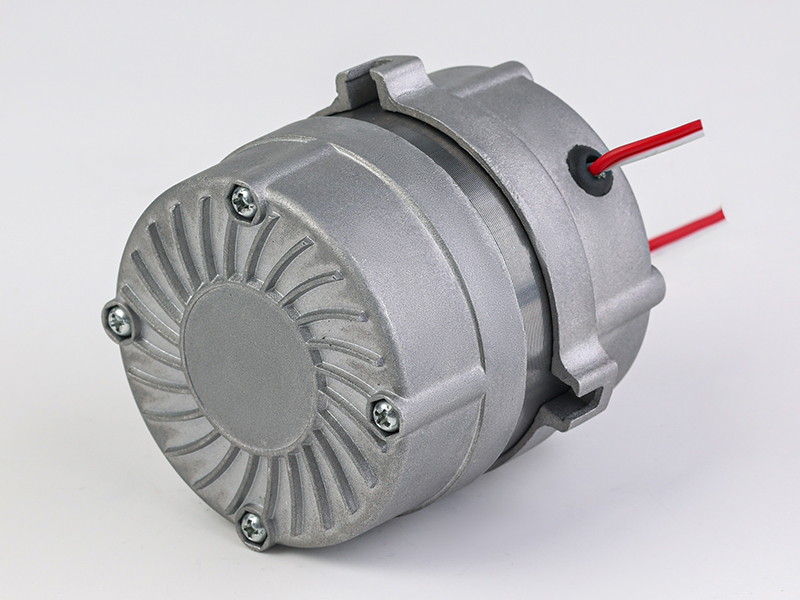

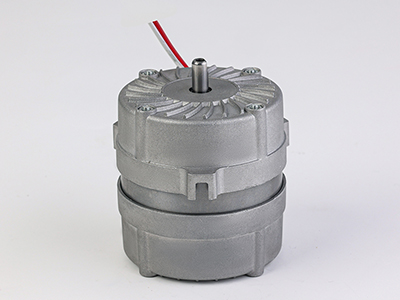

YJF 80 shaded pole motor is a 4 pole 3 speed motor that will run on 100-120V AC or 220-240V AC. It is widely used in ventilation systems such as ventilating fans, exhaust fans and pipeline fans.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram
Certifications
  • Certification
  • Certification
  • Certification
  • Certification
Application

YJ80(4P) shaded pole motor is widely used in industrial fan s of various sizes installed in the wall.

Parameters
Type Voltage/Freq.
VAC		 Current
A		 Power
W		 Speed
r/min		 Rotation Shaft dia
mm		 Stator Thickness (T)
mm		 Shaft Extension (B)
mm		 Certificate
YJ80-20 220-240V 50Hz ≤0.33 ≤45 ≤1450 CW/CCW 6/7/8 20 < 68 CE, CCC
110-120V 60Hz ≤0.66 ≤45 ≤1750
12V 50Hz ≤3.00 ≤45 ≤1450
YJ80-25 220-240V 50Hz ≤0.40 ≤55 ≤1450 CW/CCW 6/7/8 25 < 68 CE, CCC
110-120V 60Hz ≤0.80 ≤55 ≤1750
12V 50Hz ≤3.30 ≤55 ≤1450
YJ80-35 220-240V 50Hz ≤0.65 ≤80 ≤1450 CW/CCW 6/7/8 35 < 68 CE, CCC
110-120V 60Hz ≤1.30 ≤80 ≤1750
12V 50Hz ≤3.80 ≤80 ≤1450
