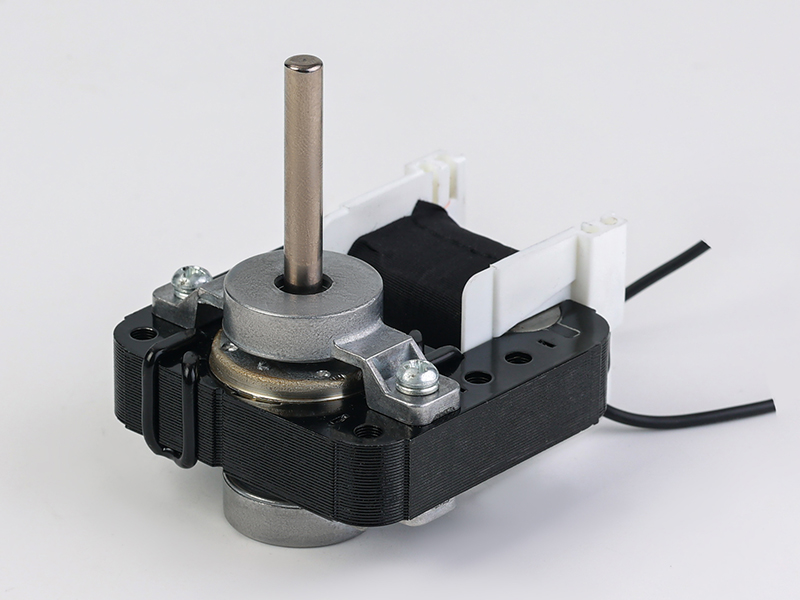

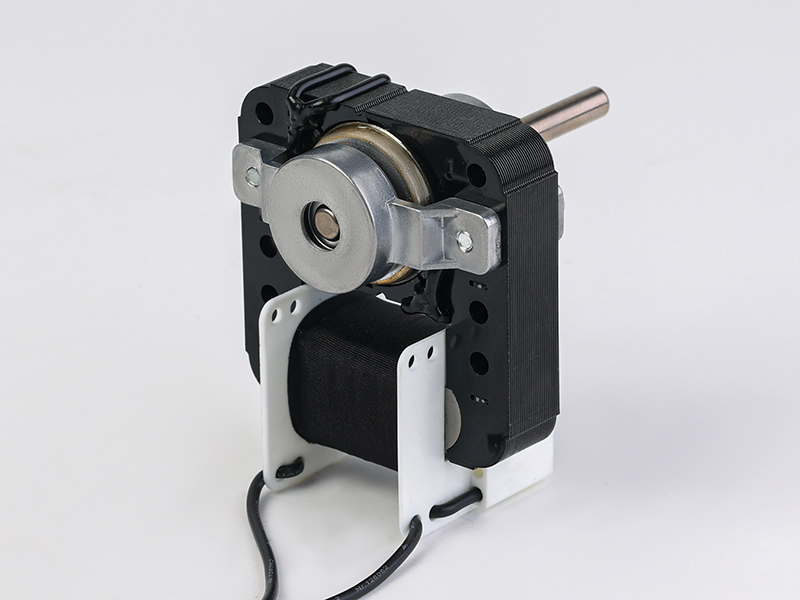

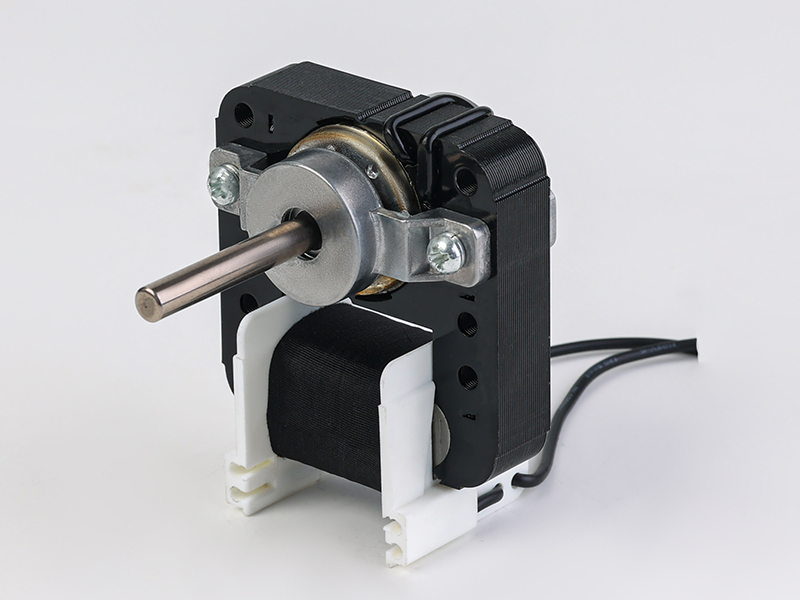

YJF 61 C-Frame Shaded Pole Motor

YJF 61 C-Frame Shaded Pole Motor
YJF 61 C-Frame Shaded Pole Motor YJF 61 C-Frame Shaded Pole Motor YJF 61 C-Frame Shaded Pole Motor

YJF 61 C-frame shaded pole motor is a 2 pole 3 speed motor that will run on 100-120V AC, 220-240V AC or 127/230V AC. It is widely used in ovens, fans water purifiers, air coolers, etc.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram
Certifications
  • Certification
  • Certification
  • Certification
  • Certification
Application

YJF61 shaded pole motor is widely used in a variety of devices, such as oven, air fryer, microwave, fireplace, dehumidifier, medical facility, water treatment equipment, heater fan, air purifier, etc.

Parameters
Type Voltage/Freq.
VAC		 Current
A		 Power
W		 Speed
r/min		 Rotation Shaft dia
mm		 Stator Thickness (T)
mm		 Shaft Extension (B)
mm		 Certificate
YJF61-09 (E/H) 220-240VAC 50Hz ≤0.18 ≤20 ≤2800 CW/CCW 3.17/4/4.6/5/5.5/6 9 < 68 CE, CCC
110-120VAC 60Hz ≤0.36 ≤20 ≤3450 UL
YJF61-13 (E/H) 220-240VAC 50Hz ≤0.20 ≤25 ≤2850 CW/CCW 3.17/4/4.6/5/5.5/6 13 < 68 CE, CCC
110-120VAC 60Hz ≤0.40 ≤25 ≤3500 UL
230/127V 50/60Hz ≤0.40 ≤25 ≤3500
YJF61-16 (E/H) 220-240VAC 50Hz ≤0.22 ≤30 ≤2900 CW/CCW 3.17/4/4.6/5/5.5/6 16 < 68 CE, CCC
110-120VAC 60Hz ≤0.40 ≤30 ≤3550 UL
230/127V 50/60Hz ≤0.40 ≤30 ≤3550
12V 50Hz ≤2.20 ≤30 ≤2900
YJF61-20 (E/H) 220-240VAC 50Hz ≤0.25 ≤35 ≤2950 CW/CCW 3.17/4/4.6/5/5.5/6 20 < 68 CE, CCC
110-120VAC 60Hz ≤0.50 ≤35 ≤3570 UL
230/127V 50/60Hz ≤0.50 ≤35 ≤3570
12V 50Hz ≤2.30 ≤35 ≤2950
YJF61-25 (E/H) 220-240VAC 50Hz ≤0.30 ≤40 ≤2950 CW/CCW 3.17/4/4.6/5/5.5/6 25 < 68 CE, CCC
110-120VAC 60Hz ≤0.60 ≤40 ≤3580 UL
230/127V 50/60Hz ≤0.60 ≤40 ≤3580
YJF61-30 (E/H) 220-240VAC 50Hz ≤0.35 ≤45 ≤2970 CW/CCW 3.17/4/4.6/5/5.5/6 30 < 68
110-120VAC 60Hz ≤0.70 ≤45 ≤3590
YJF61-40 (E/H) 220-240VAC 50Hz ≤0.40 ≤50 ≤2980 CW/CCW 3.17/4/4.6/5/5.5/6 40 < 68 CE, CCC
110-120VAC 60Hz ≤0.80 ≤50 ≤3590 UL
