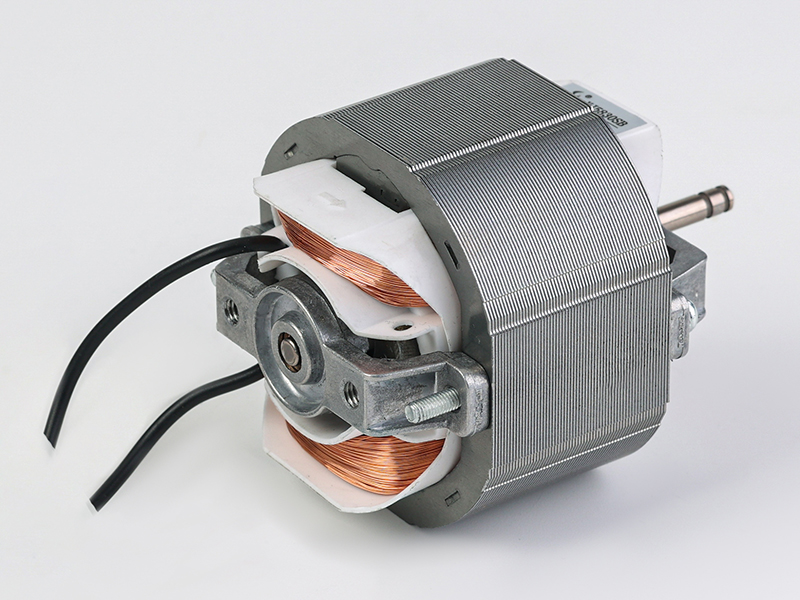

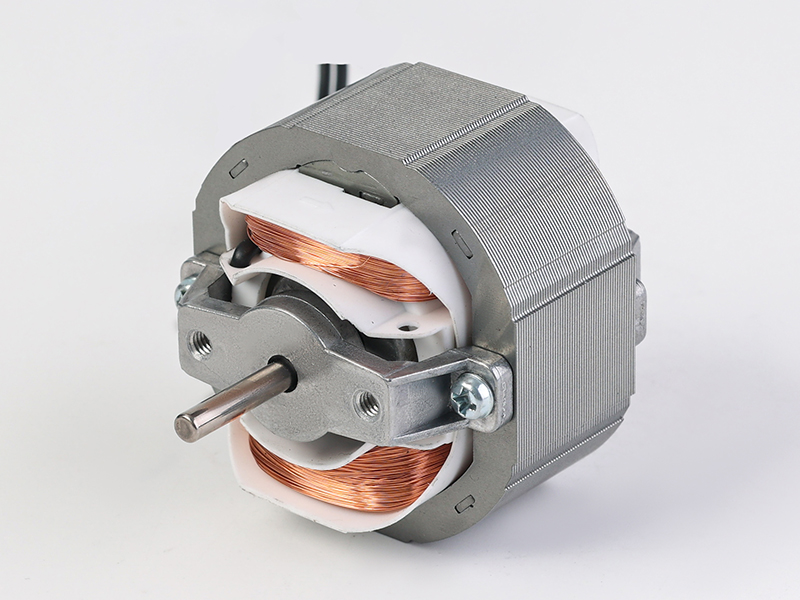

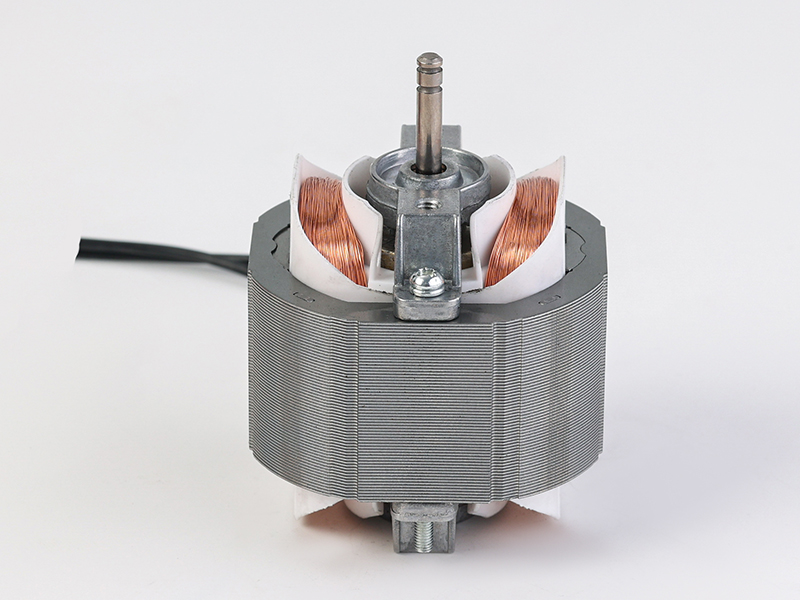

YJ 58 O-Frame Shaded Pole Motor

YJ 58 O-frame shaded pole motor is a 2 pole 2 speed motor that will run on 12V AC, 100-120V AC, 220-240 AC or 127/230V AC. It is widely used in ventilation systems like ventilating fans, exhaust fans and home appliances like heaters and air coolers.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram

Certifications

Application

YJ58 shaded pole motor is suitable for many small appliances, such as heater fan, exhaust fan, air purifier, hand dryer, humidifier, mosquito zapper, etc.

Parameters

Type	Voltage /Freq. VAC	Current A	Power W	Speed r/min	Rotation	Shaft dia mm	Thickness (T) mm	Shaft Extension (B) mm	Certificate
YJ58 -10	220-240V 50Hz	≤0.15	≤15	≤2700	CW/CCW	4/5	8	< 68	CE CCC
YJ58 -10	110-120V 60Hz	≤0.30	≤15	≤3400	CW/CCW	4/5	8	< 68
YJ58 -10	220-240V 50Hz	≤0.18	≤18	≤2750	CW/CCW	4/5	10	< 68	CE CCC
	110-120V 60Hz	≤0.36	≤18	≤3450
	230/127V 50/60Hz	≤0.36	≤18	≤3450
YJ58-12	220-240V 50Hz	≤0.20	≤20	≤2800	CW/CCW	4/5	12	< 68	CE TUV CCC
	110-120V 60Hz	≤0.40	≤20	≤3450					UL
	230/127V 50/60Hz	≤0.40	≤20	≤3450
	12V 50Hz	≤2.10	≤20	≤2800
YJ58-16	220-240V 50Hz	≤0.25	≤25	≤2850	CW/CCW	4/5	16	< 68	CE TUV CCC
	110-120V 60Hz	≤0.50	≤25	≤3520					UL
	230/127V 50/60Hz	≤0.50	≤25	≤3520
	12V 50Hz	≤2.20	≤25	≤2850
YJ58-20	220-240V 50Hz	≤0.30	≤30	≤2900	CW/CCW	4/5	20	< 68	CE CCC
	110-120V 60Hz	≤0.60	≤30	≤3540
	230/127V 50/60Hz	≤0.60	≤30	≤3540
	12V 50Hz	≤2.30	≤30	≤2900
YJ58-25	220-240V 50Hz	≤0.35	≤33	≤2950	CW/CCW	4/5	25	< 68	CE CCC
	110-120V 60Hz	≤0.70	≤33	≤3560
	230/127V 50/60Hz	≤0.70	≤33	≤3560
YJ58-30	220-240V 50Hz	≤0.40	≤35	≤2950	CW/CCW	4/5	30	< 68	CE CCC
	110-120V 60Hz	≤0.80	≤35	≤3590
	230/127V 50/60Hz	≤0.80	≤35	≤35890
YJ58-35	220-240V 50Hz	≤0.45	≤38	≤2950	CW/CCW	4/5	35	< 68	CE CCC
YJ58-35	110-120V 60Hz	≤0.90	≤38	≤3590	CW/CCW	4/5	35	< 68
