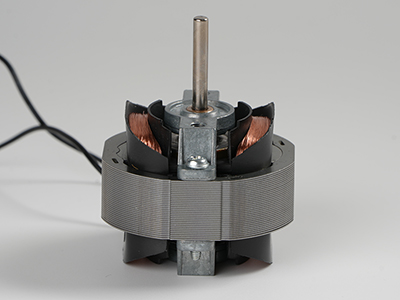

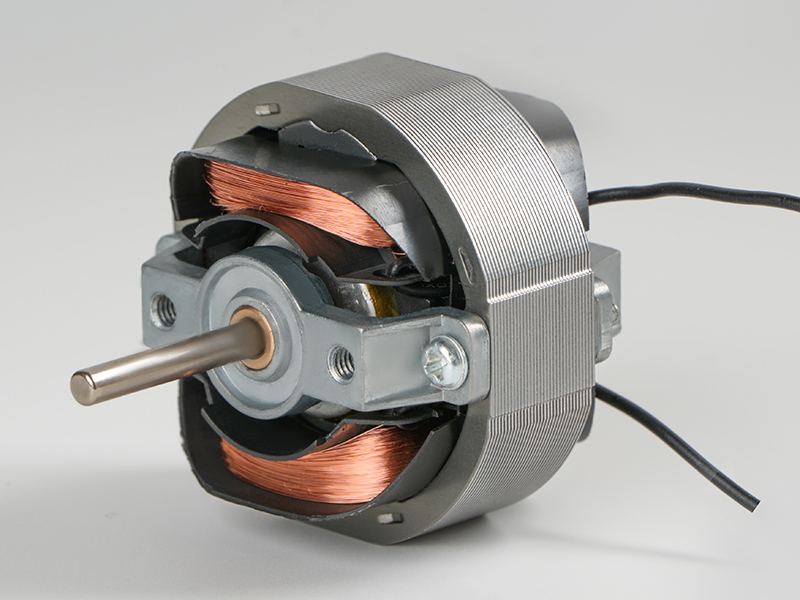

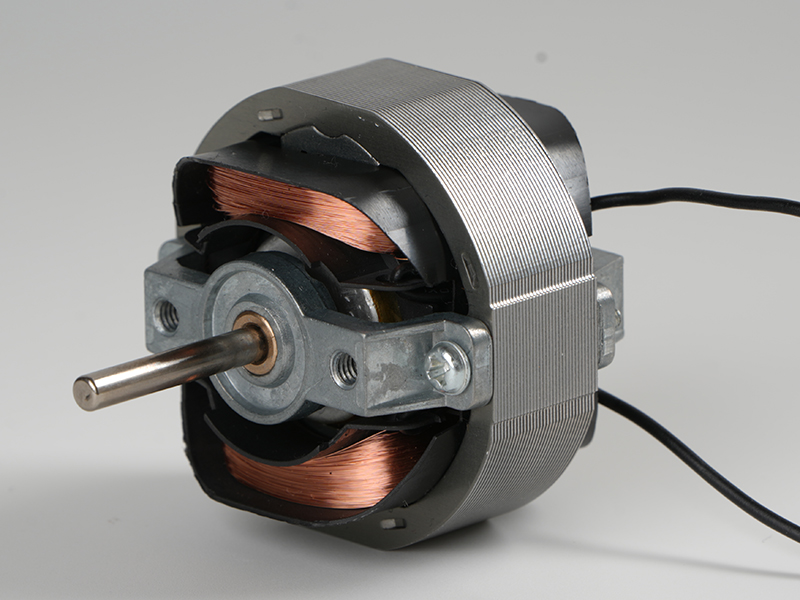

YJ 52 O-Frame Shaded Pole Motor

YJ 52 O-Frame Shaded Pole Motor
YJ 52 O-Frame Shaded Pole Motor YJ 52 O-Frame Shaded Pole Motor YJ 52 O-Frame Shaded Pole Motor

YJ 52 O-frame shaded pole motor is a 2 pole 2 speed motor that will run on 12V AC, 100-120V AC, 220-240V AC or 127/230V AC. It can be used in ventilation systems such as ventilating fans and exhaust fans.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram
Certifications
  • Certification
  • Certification
  • Certification
  • Certification
Application

YJ52 shaded pole motor is suitable for many small appliances, such as heater fan, exhaust fan, air purifier, hand dryer, humidifier, mosquito zapper, etc.

Parameters
Type Voltage/Freq.
VAC		 Current
A		 Power
W		 Speed
r/min		 Rotation Shaft dia
mm		 Stator Thickness (T)
mm		 Shaft Extension (B)
mm
YJ52-16 220-240V 50Hz ≤0.20 ≤18 ≤2800 CW/CCW 4 16 < 68
110-120V 60Hz ≤0.40 ≤18 ≤3450
230/127V 50/60Hz ≤0.40 ≤18 ≤3450
12V 50Hz ≤2.00 ≤18 ≤2800
YJ52-20 220-240V 50Hz ≤0.22 ≤20 ≤2850 CW/CCW 4 20 < 68
110-120V 60Hz ≤0.44 ≤20 ≤3500
230/127V 50/60Hz ≤0.44 ≤20 ≤3500
12V 50Hz ≤2.20 ≤20 ≤2850
YJ52-25 220-240V 50Hz ≤0.24 ≤25 ≤2900 CW/CCW 4 25 < 68
110-120V 60Hz ≤0.48 ≤25 ≤3550
230/127V 50/60Hz ≤0.48 ≤25 ≤3550
12V 50Hz ≤2.40 ≤25 ≤2900
YJ52-30 220-240V 50Hz ≤0.26 ≤30 ≤2950 CW/CCW 4 30 < 68
110-120V 60Hz ≤0.52 ≤30 ≤3580
230/127V 50/60Hz ≤0.52 ≤30 ≤3580
12V 50Hz ≤2.60 ≤30 ≤2950
