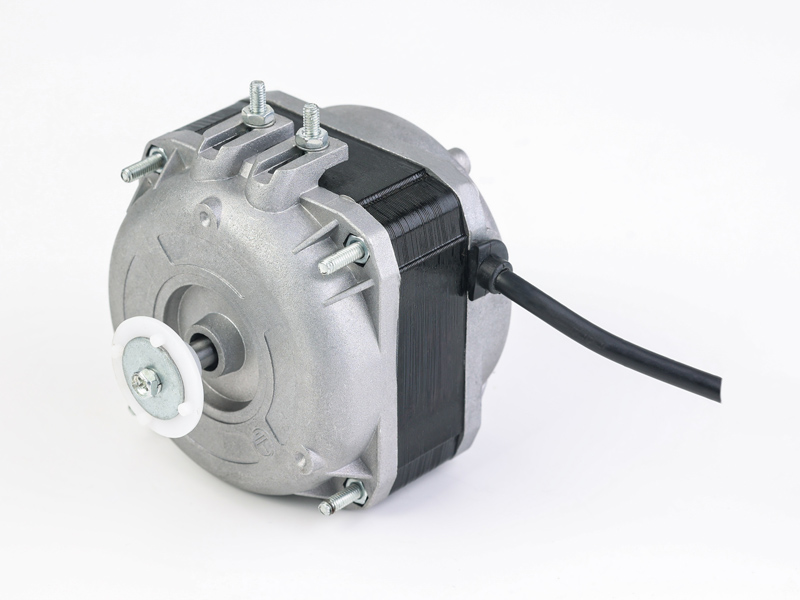

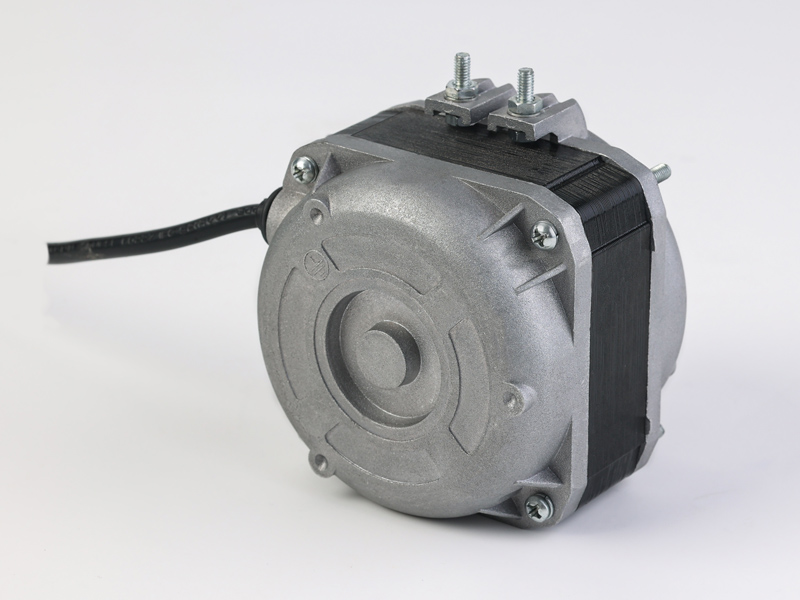

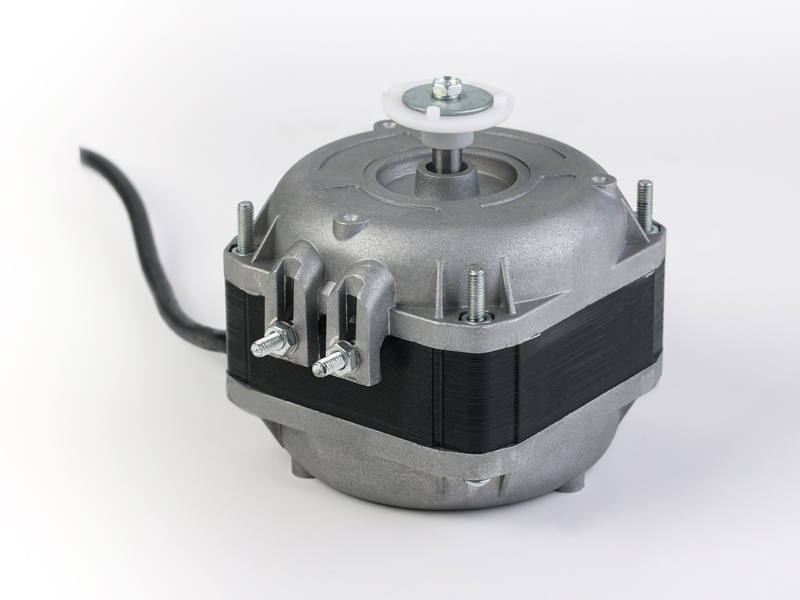

YJF 82 Q-Frame Shaded Pole Motor

YJF 82 Q-Frame Shaded Pole Motor
YJF 82 Q-Frame Shaded Pole Motor YJF 82 Q-Frame Shaded Pole Motor YJF 82 Q-Frame Shaded Pole Motor

YJF 82 Q-frame shaded pole motor is a 4 pole 3 speed motor that will run on 100-120V AC or 220-240V AC. It is widely used in refrigerators, freezers, refrigerated display cabinets, industrial heaters and other ventilation systems.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram
Certifications
  • Certification
  • Certification
  • Certification
  • Certification
Application

YJ82 shaded pole motor is widely used in industrial heater fan, refrigerator, freezer, cooler display cabinet, industry exhaust fan etc.

Parameters
Type Voltage/Freq.
VAC 		Current
A 		 Power
W 		Speed
r/min 		Rotation Shaft dia
mm 		Stator Thickness(T)
mm 		Shaft Extention(B)
mm 		Certificate
YJF82-13 220-240V 50Hz 0.20 5/29 1300 CW/CCW 6/7/8 13 < 90 CE, CCC
110-120V 60Hz 0.45 5/36 1500
YJF82-19 220-240V 50Hz 0.25 10/39 1300 CW/CCW 6/7/8 19 < 90 CE, CCC
110-120V 60Hz 0.80 10/55 1500
YJF82-25 220-240V 50Hz 0.45 16/65 1300 CW/CCW 6/7/8 25 < 90 CE, CCC
110-120V 60Hz 1.10 16/80 1500
