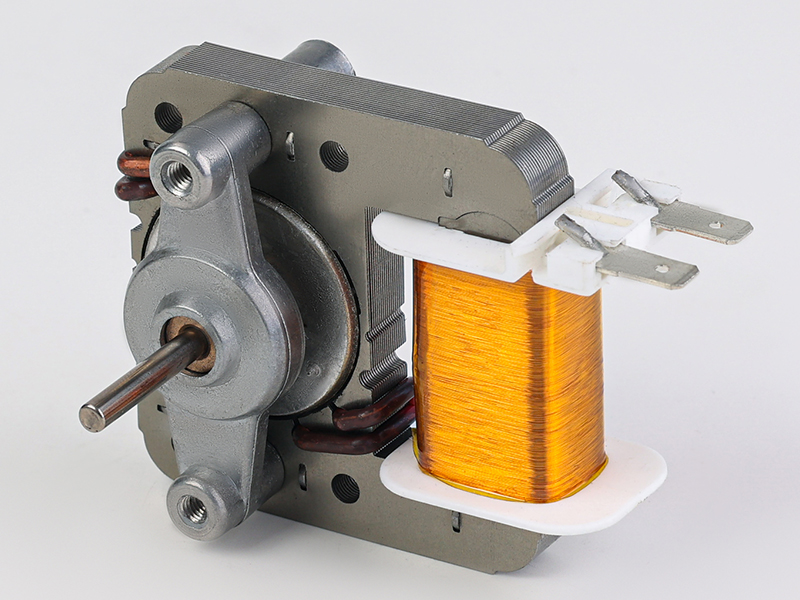

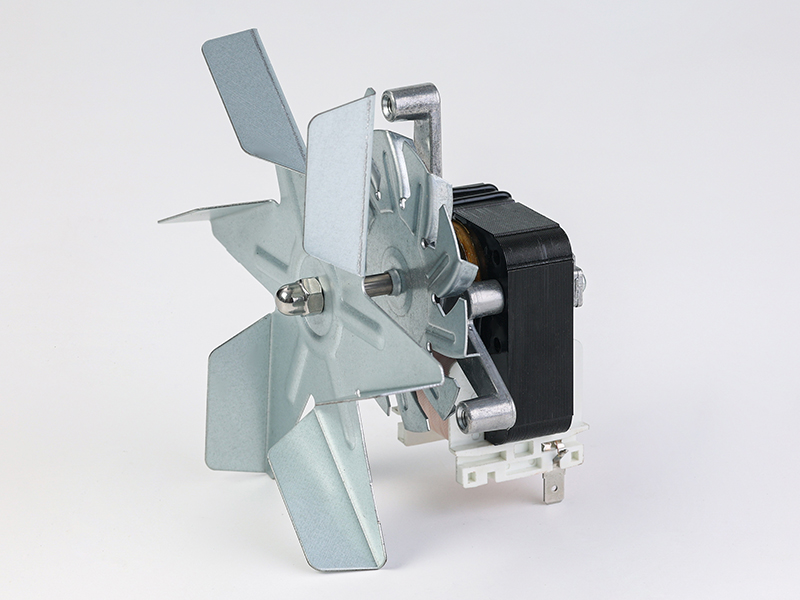

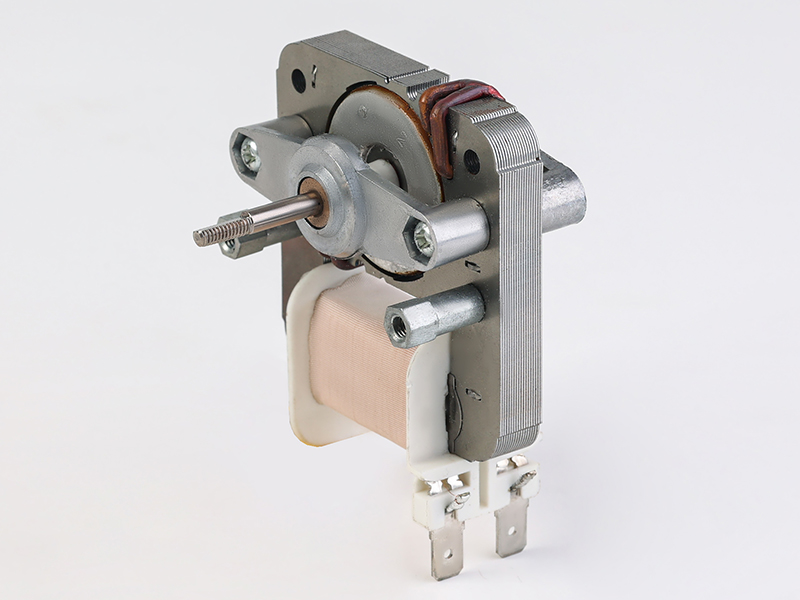

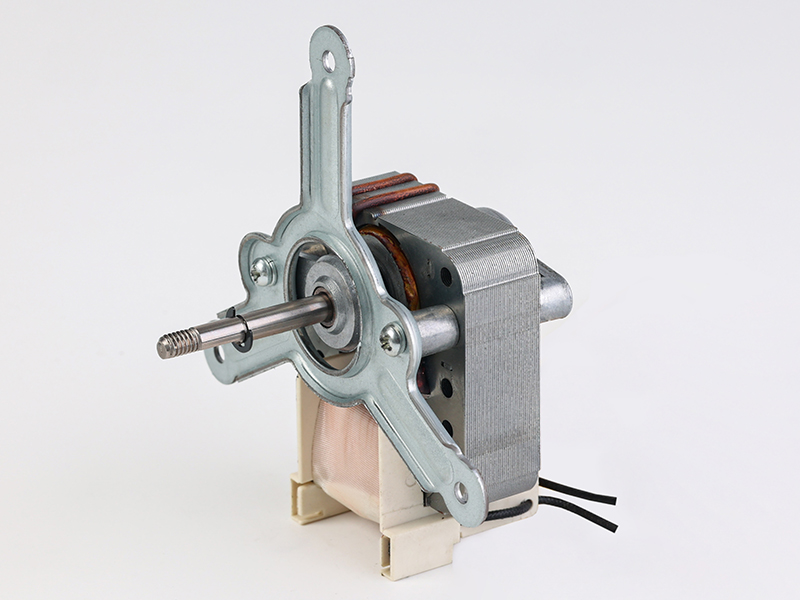

YJF 62 C-Frame Shaded Pole Motor
YJF 62 C-frame shaded pole motor is a 2 pole 3 speed motor that will run on 100-120V AC, 220-240V AC or 127/230V AC. It is widely used in ovens, fans water purifiers, air coolers, etc.
We also offer custom services like motor design and construction, optional configuration and logo printing.
Diagram
Certifications
Application
YJF62 shaded pole motor is widely used in a variety of devices, such as oven, air fryer, microwave, fireplace, dehumidifier, medical facility, water treatment equipment, heater fan, air purifier, etc.
Parameters
| Type | Voltage/Freq. VAC | Current A | Power W | Speed r/min | Rotation | Shaft dia mm | Stator Thickness (T) mm | Shaft Extension (B) mm | Certificate |
| 220-240VAC 50Hz | ≤0.18 | ≤20 | ≤2800 | CW/CCW | 3.17/4/4.6/5/6 | 9 | < 68 | ||
| 110-120VAC 60Hz | ≤0.36 | ≤20 | ≤3400 | ||||||
| 220-240VAC 50Hz | ≤0.20 | ≤25 | ≤2850 | CW/CCW | 3.17/4/4.6/5/6 | 12 | < 68 | ||
| 110-120VAC 60Hz | ≤0.40 | ≤25 | ≤3500 | ||||||
| 230/127V 50/60Hz | ≤0.40 | ≤25 | ≤3500 | ||||||
| 220-240VAC 50Hz | ≤0.22 | ≤30 | ≤2900 | CW/CCW | 3.17/4/4.6/5/6 | 16 | < 68 | ||
| 110-120VAC 60Hz | ≤0.40 | ≤30 | ≤3550 | ||||||
| 230/127V 50/60Hz | ≤0.40 | ≤30 | ≤3550 | ||||||
| 12V 50Hz | ≤2.20 | ≤30 | ≤2900 | ||||||
| 220-240VAC 50Hz | ≤0.25 | ≤35 | ≤2950 | CW/CCW | 3.17/4/4.6/5/6 | 20 | < 68 | ||
| 110-120VAC 60Hz | ≤0.50 | ≤35 | ≤3570 | ||||||
| 230/127V 50/60Hz | ≤0.50 | ≤35 | ≤3570 | ||||||
| 12V 50Hz | ≤2.30 | ≤35 | ≤2950 | ||||||
| 220-240VAC 50Hz | ≤0.30 | ≤40 | ≤2950 | CW/CCW | 3.17/4/4.6/5/6 | 25 | < 68 | ||
| 110-120VAC 60Hz | ≤0.60 | ≤40 | ≤3580 | ||||||
| 230/127V 50/60Hz | ≤0.60 | ≤40 | ≤3580 |
