YJ 80 O-Frame Shaded Pole Motor

YJ 80 O-Frame Shaded Pole Motor
YJ 80 O-Frame Shaded Pole Motor YJ 80 O-Frame Shaded Pole Motor YJ 80 O-Frame Shaded Pole Motor

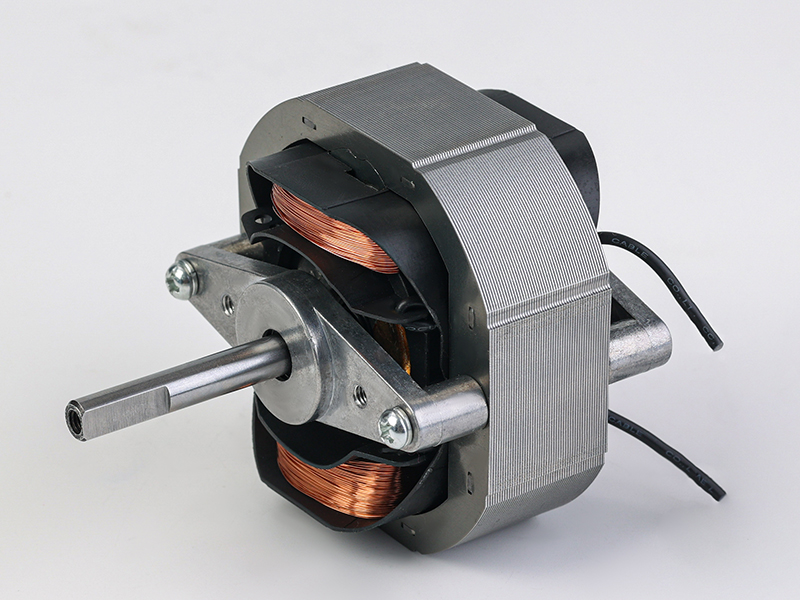

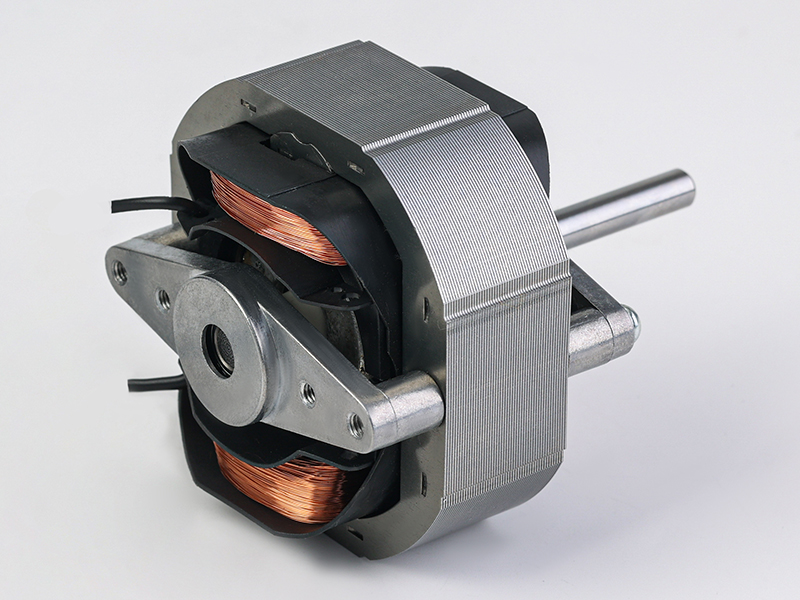

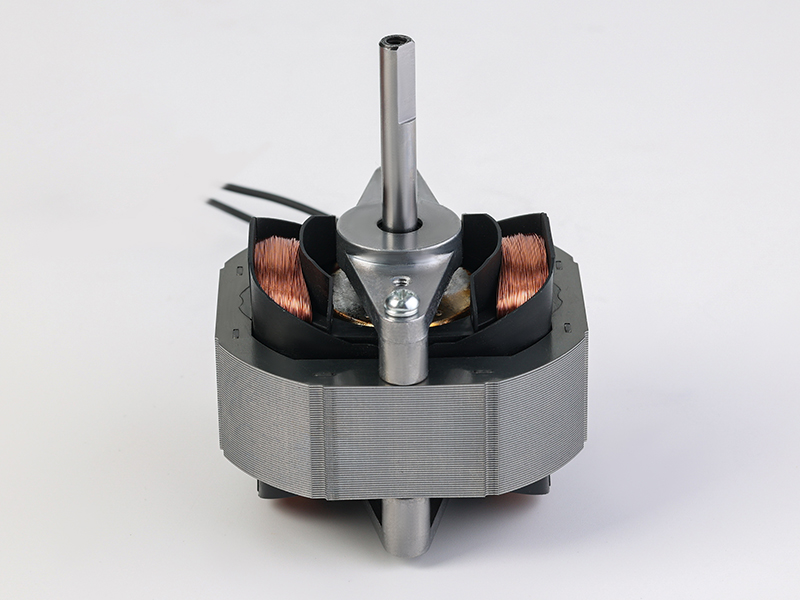

YJ 80 O-frame shaded pole motor is a 2 pole 2 speed motor that will run on 100-120V AC, 220-240V AC or 127/230V AC. It is widely used in ventilation systems like ventilating fans, exhaust fans and pipeline fans.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram
Certifications
  • Certification
  • Certification
  • Certification
  • Certification
Application

YJ80(2P) shaded pole motor is widely used in duct fans and mixed flow plastic fans of various sizes required in apartment, commercial buildings and industrial plants.

Parameters
Type Voltage/Freq.
VAC		 Current
A		 Power
W		 Speed
r/min		 Rotation Shaft dia
mm		 Stator Thickness (T)
mm		 Shaft Extension (B)
mm		 Certificate
YJ80-25 220-240V 50Hz 0.25 36 2450 CW/CCW 7 25 < 90 CE,CCC
0.15 24 2050
110-120V 60Hz 0.75 56 2400 CW/CCW 7 25 < 90
0.59 45 2000
220V/127V 60Hz 0.30 40 3480 CW/CCW 7 25 < 90
0.60 40 3480
Inquiry
Other Products
About Us
About Us

Founded in 1999, Zhejiang Yixiong M&E Manufacturing Co., Ltd has over 20 years of experience in manufacturing Electronically Commutated (EC) motors, shaded pole motors and cross flow fans. Our products can be custom made to suit different applications, such as moisture and mold resistant electric motor or heat-resistant motor.

Read More
Factory Tour

We have around 260 employees and 6 workshops for high speed press, aluminium casting, injection moulding, riveting, winding and assembly. They are well equipped with a complete set of equipment like high speed punching machine, die casting machine, injection moulding machine and 4 assembly lines. We can produce on average 35,000 electric motors per day.
