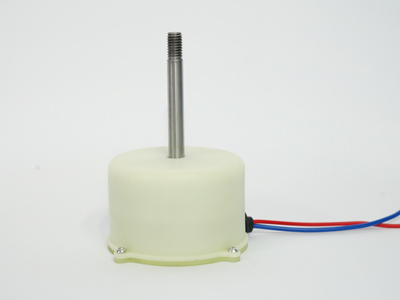

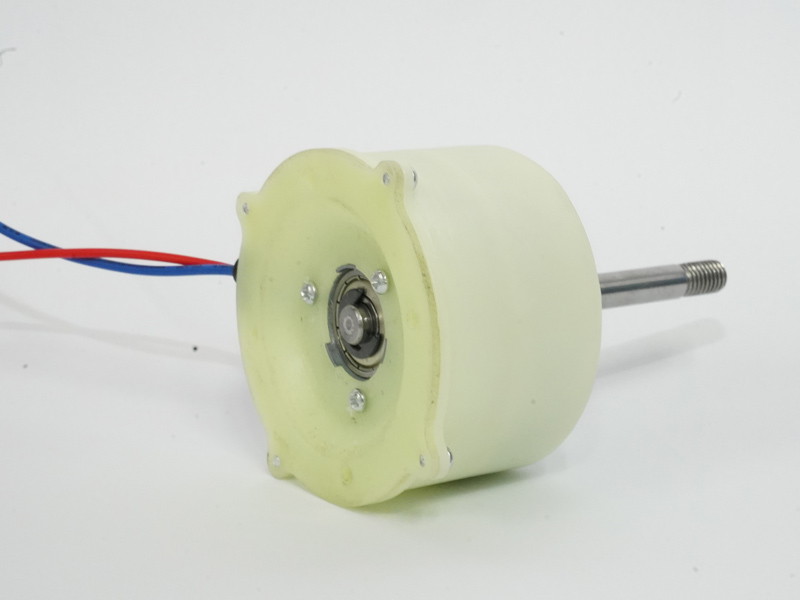

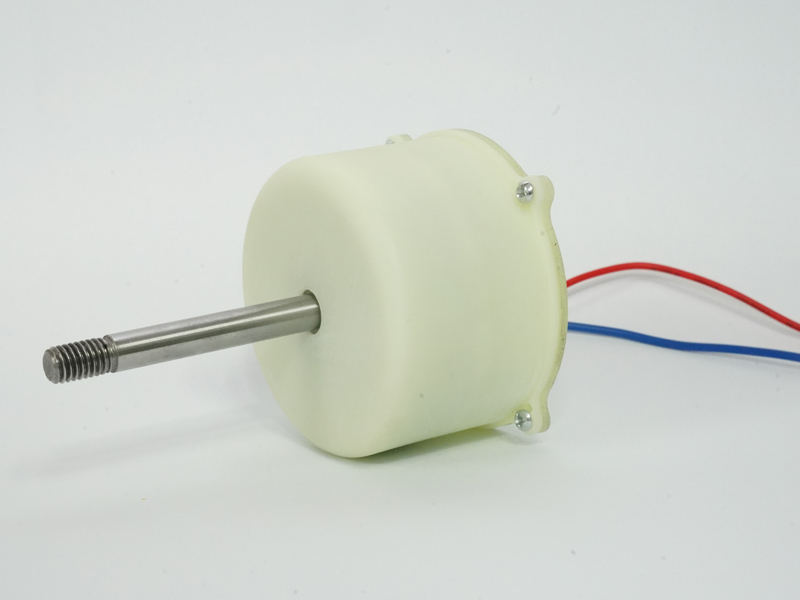

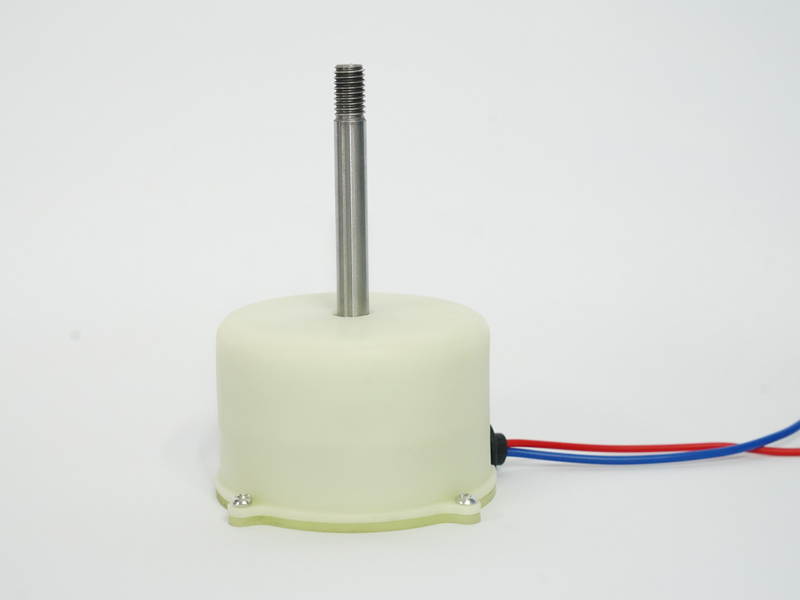

EC52 Electronically Commutated Motor (EC Motor)

EC52 Electronically Commutated Motor
EC52 Electronically Commutated Motor EC52 Electronically Commutated Motor EC52 Electronically Commutated Motor

EC52 electronically commutated motor comes with a maximum speed of 3500r/min, a power of less than 30W, strong power and stable operation.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram
Application

EC52 electronically commutated motor is widely used in various sizes of duct fans that are applied in homes, commercial buildings, and industrial plants.

Parameters
Type Function Voltage/Freq. Speed
r/min		 Power
W		 Shaft dia
mm		 Shaft Extension (B)
mm
EC52 CW or CCW
1 speed or 2 speed		 100-240V AC 50/60Hz ≤3500 ≤30 5/6/7/8 ≤16.5
Reversible
Speed Control		 100-240V AC 50/60Hz ≤16.5
BLDC52 CW or CCW
1 speed or 2 speed		 12V DC ≤16.5
Reversible
Speed Control		 12V DC ≤16.5
