EC42 Electronically Commutated Motor (EC Motor)

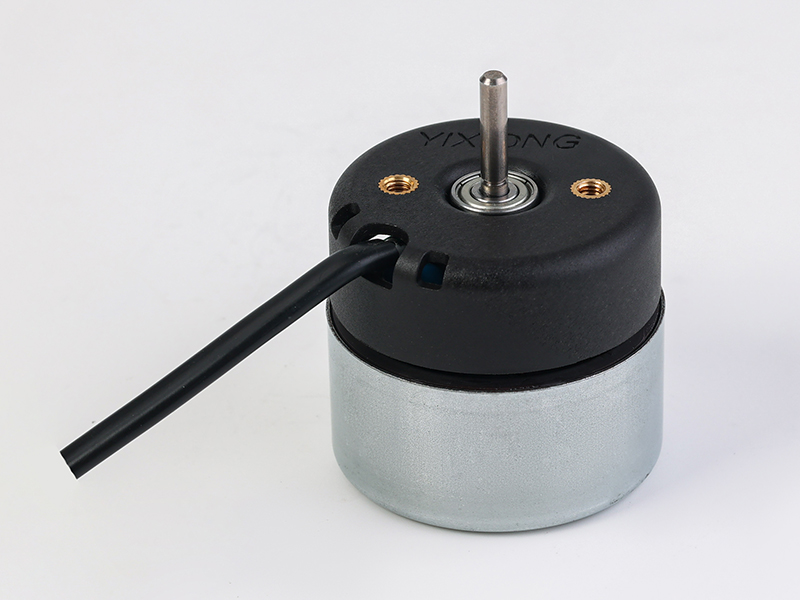

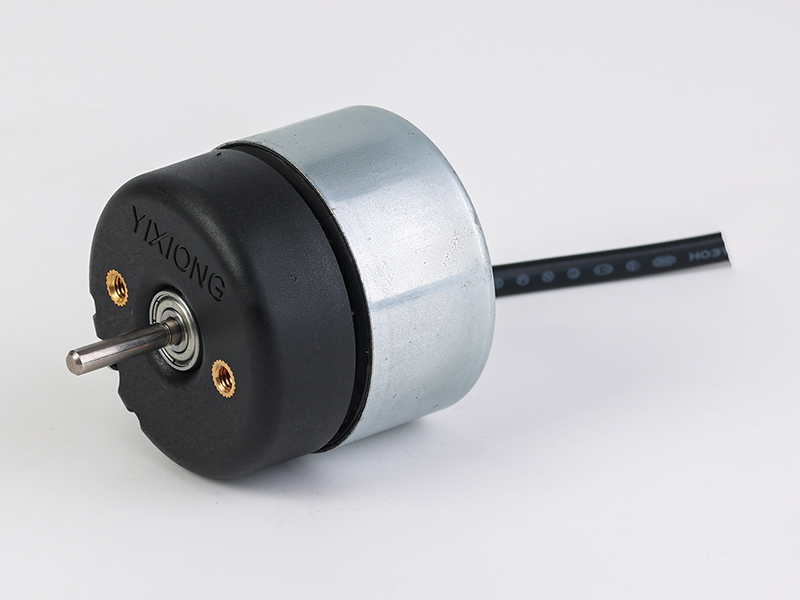

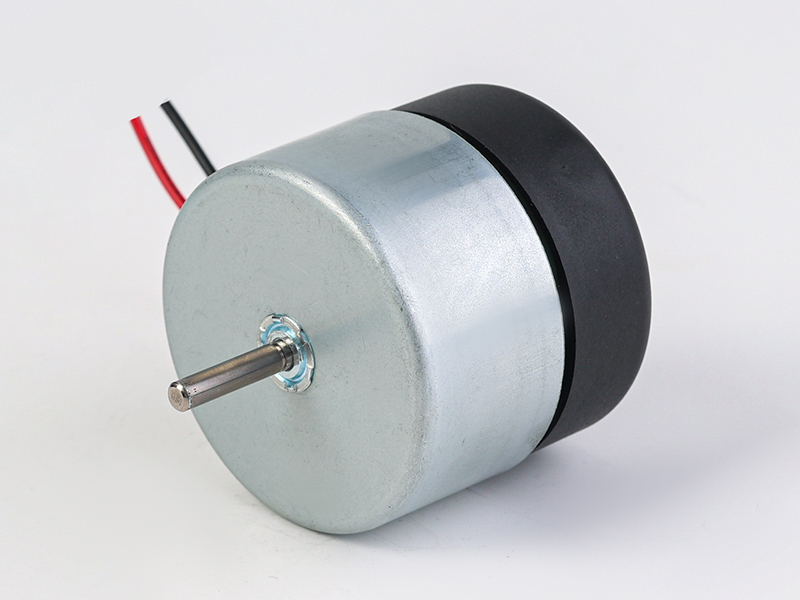

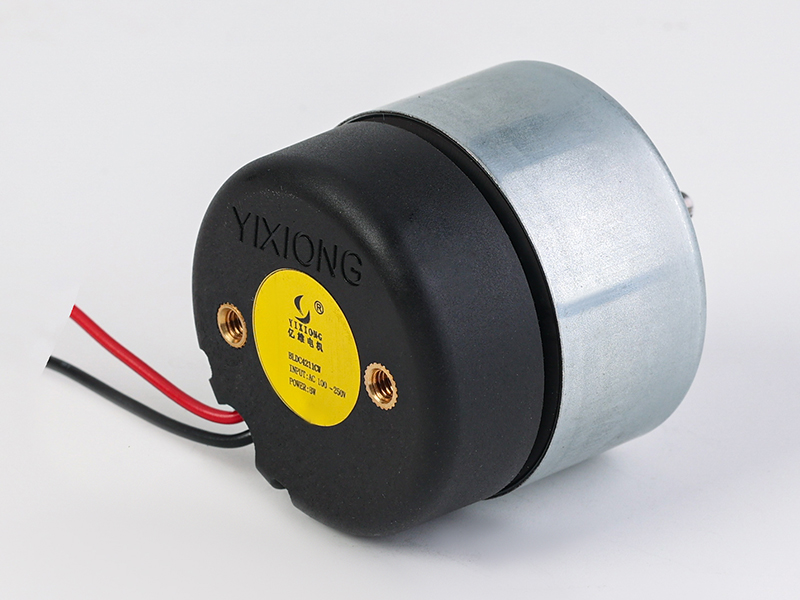

EC42 Electronically Commutated Motor
EC42 Electronically Commutated Motor EC42 Electronically Commutated Motor EC42 Electronically Commutated Motor EC42 Electronically Commutated Motor

EC42 electronically commutated motor comes with a maximum speed of 3500r/min, a power of less than 13W, stable operation and low noise.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram
Application

EC42 electronically commutated motor is widely used in ventilation systems and fresh air systems in homes, commercial buildings, and industrial plants.

Parameters
Type Function Voltage/Freq. Speed
r/min		 Power
 W		 Shaft dia
mm		 Shaft Extension (B)
mm		 Certificate
EC42 CW or CCW
1 speed, 2 speed		 100-240V AC 50/60Hz ≤3500 ≤13 4 ≤65 CE
Reversible
Speed Control		 100-240V AC 50/60Hz CE
BLDC42 CW or CCW
1 speed, 2 speed		 12V DC CE
Reversible
Speed Control		 12V DC CE
Inquiry
Other Products
About Us
About Us

Founded in 1999, Zhejiang Yixiong M&E Manufacturing Co., Ltd has over 20 years of experience in manufacturing Electronically Commutated (EC) motors, shaded pole motors and cross flow fans. Our products can be custom made to suit different applications, such as moisture and mold resistant electric motor or heat-resistant motor.

Read More
Factory Tour

We have around 260 employees and 6 workshops for high speed press, aluminium casting, injection moulding, riveting, winding and assembly. They are well equipped with a complete set of equipment like high speed punching machine, die casting machine, injection moulding machine and 4 assembly lines. We can produce on average 35,000 electric motors per day.
