YJF 84 Shaded Pole Motor

Zhejiang Yixiong M&E Manufacturing Co., Ltd.

YJF 84 Shaded Pole Motor

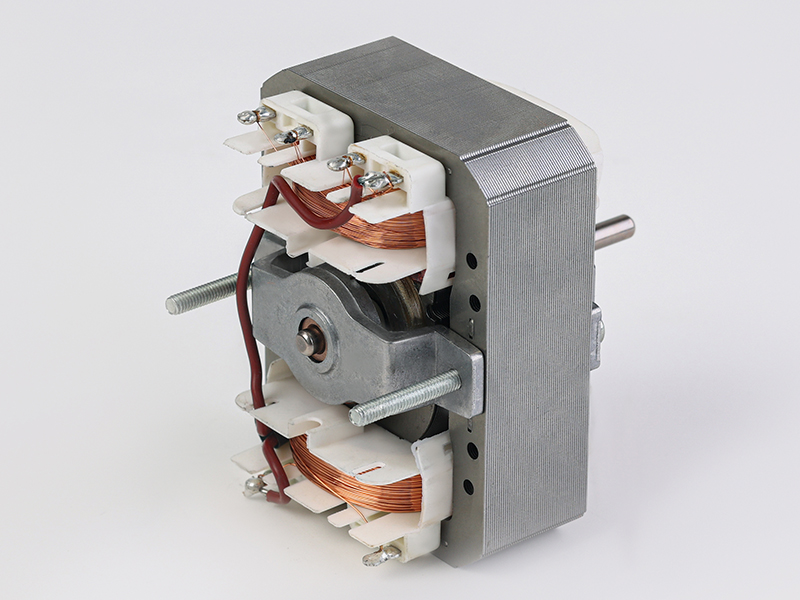

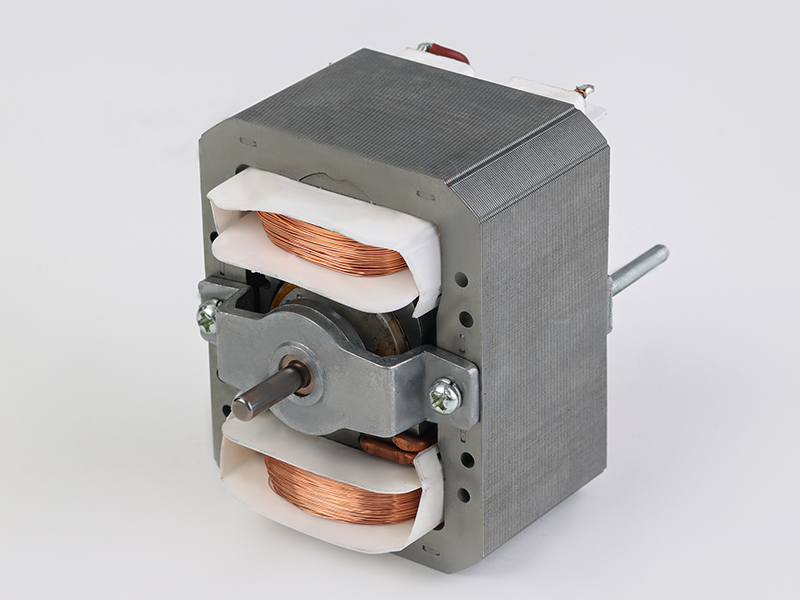

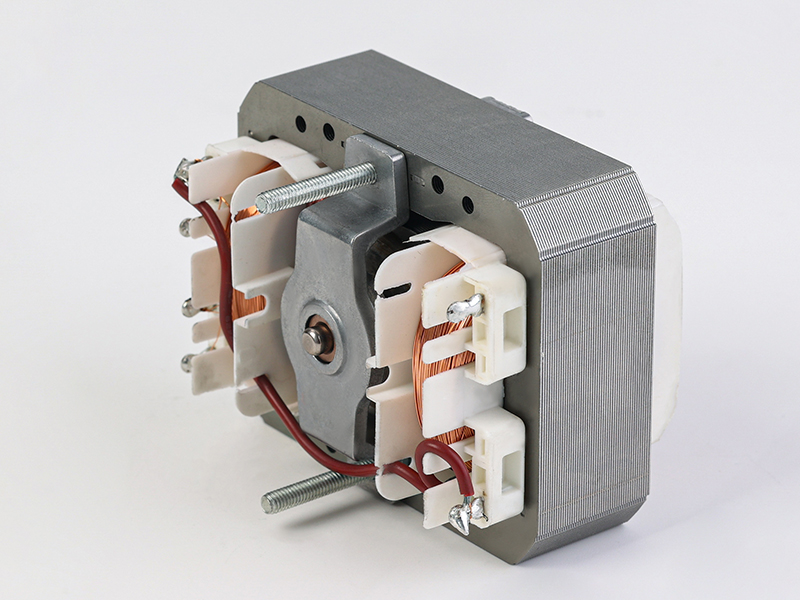

YJF 84 shaded pole motor is a 2 pole 3 speed motor that will run on 100-120V AC or 220-240V AC. It is widely used in range hoods, hand dryers and other appliances.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram

Certifications

Application

YJF84 shaded pole motor is widely used in a variety of range hoods, especially column range hoods, as well as hand dryers, blenders, and other appliances.

Parameters

Type	Voltage /Freq. VAC	Current A	Power W	Speed r/min	Rotation	Shaft dia mm	Stator Thickness (T) mm	Shaft Extension (B) mm	Certificate
YJF84-20	220-240V 50Hz	≤0.90	≤110	≤2950	CW/CCW	5	20	< 68	CE CCC
YJF84-20	110-120V 60Hz	≤1.80	≤110	≤3400	CW/CCW	5	20	< 68
YJF84-22	220-240V 50Hz	≤1.00	≤120	≤2950	CW/CCW	5	22	< 68	CE CCC
YJF84-22	110-120V 60Hz	≤2.00	≤120	≤3400	CW/CCW	5	22	< 68
YJF84-25	220-240V 50Hz	≤1.10	≤150	≤2950	CW/CCW	5	25	< 68	CE CCC
	110-120V 60Hz	≤2.30	≤150	≤3400
	230/127V 50/60Hz	≤2.30	≤150	≤3400
YJF84-28	220-240V 50Hz	≤1.25	≤165	≤2950	CW/CCW	5	28	< 68	CE CCC
	110-120V 60Hz	≤2.60	≤165	≤3400
	230/127V 50/60Hz	≤2.60	≤165	≤3400
YJF84-30	220-240V 50Hz	≤1.35	≤170	≤2950	CW/CCW	5	30	< 68	CE CCC
	110-120V 60Hz	≤2.65	≤170	≤3400
	230/127V 50/60Hz	≤2.65	≤170	≤3400
YJF84-33	220-240V 50Hz	≤1.50	≤185	≤2950	CW/CCW	5	33	< 68	CE CCC
	110-120V 60Hz	≤3.10	≤185	≤3400
	230/127V 50/60Hz	≤3.10	≤185	≤3400
YJF84-38	220-240V 50Hz	≤1.90	≤200	≤2950	CW/CCW	5	38	< 68	CE CCC
	110-120V 60Hz	≤3.90	≤200	≤3400
	230/127V 50/60Hz	≤3.90	≤200	≤3400
YJF84-42	220-240V 50Hz	≤2.20	≤220	≤2950	CW/CCW	5	42	< 68	CE CCC
YJF84-42	110-120V 60Hz	≤4.50	≤220	≤3400	CW/CCW	5	42	< 68
